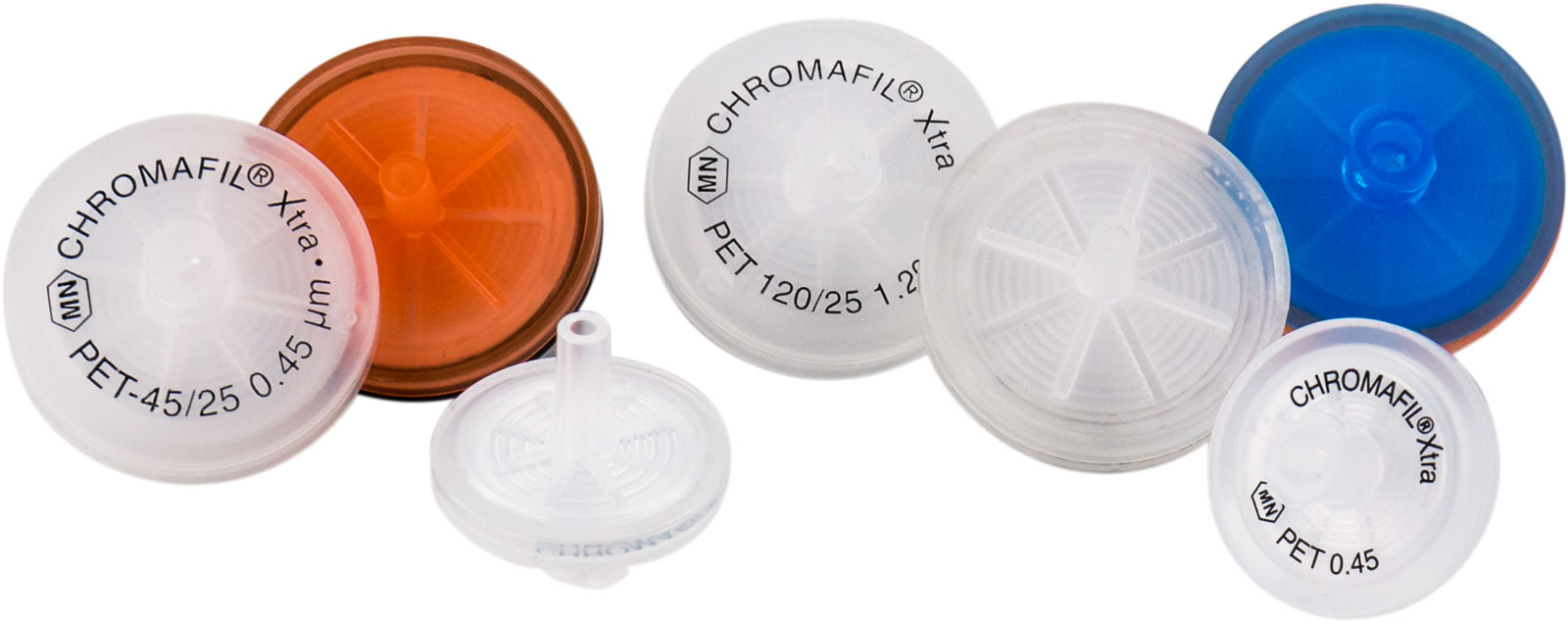

CHROMAFIL® Syringe Filters – Polyester (PET)

  • Hydrophilic multipurpose membrane
  • For polar as well as nonpolar solvents
  • This filter, primarily used for HPLC, is especially suited for mixtures of water and organic solvents for TOC/DOC determination
  • This filter is not cytotoxic and does not inhibit the growth of microorganisms and other cell types
  • Polyester filter with integrated glass fibre prefilter (GF/PET): recommended for solutions with a high load of particulate matter or for highly viscous solutions

Chromafil

Catalog No.DescriptionPrice (USD)
729022Chromafil Syringe Filters, PET-20/15, 0.20um, 15mm diam., PP/PET, yellow/orange, 100/pk Buy now $129.00
729023Chromafil Syringe Filters, PET-45/15, 0.45um, 15mm diam., PP/PET, colorless/orange, 100/pk Buy now $129.00
729021Chromafil Syringe Filters, PET-20/25, 0.20um, 25mm diam., yellow/orange, 100/pk Buy now $129.00
729020Chromafil Syringe Filters, PET-45/25, 0.45um, 25mm diam., PP/PET, colorless/orange, 100/pk Buy now $129.00
729020.400Chromafil Syringe Filters, PET-45/25, 0.45um, 25mm diam., PP/PET, colorless/orange, 400/pk Buy now $515.00
729033Chromafil Syringe Filters, PP/GF/PET-45/25, 1.0/0.45um, 25mm diam., black/orange, 100/pk Buy now $162.00
729033.400Chromafil Syringe Filters, PP/GF/PET-45/25, 1.0/0.45um, 25mm diam., black/orange, 400/pk Buy now $655.00

Chromafil Xtra

Catalog No.DescriptionPrice (USD)
729221Chromafil Xtra Syringe Filters, PET-20/25, 0.20um, 25mm diam., colorless/labelled, 100/pk Buy now $129.00
729221.400Chromafil Xtra Syringe Filters, PET-20/25, 0.20um, 25mm diam., colorless/labelled, 400/pk Buy now $515.00
729220Chromafil Xtra Syringe Filters, PET-45/25, 0.45um, 25mm diam., colorless/labelled, 100/pk Buy now $129.00
729220.400Chromafil Xtra Syringe Filters, PET-45/25, 0.45um, 25mm diam., colorless/labelled, 400/pk Buy now $515.00
729229Chromafil Xtra Syringe Filters, PET-120/25, 1.2um, 25mm diam., colorless/labelled, 100/pk Buy now $129.00
729229.400Chromafil Xtra Syringe Filters, PET-120/25, 1.2um, 25mm diam., colorless/labelled, 400/pk Buy now $515.00
Type Pore Size (µm) Membrane Diameter (mm) Color (Top) Color (Bottom) Standard Pack (Filters/Pack) REF BIG-BOX (Filters/Pack)
Xtra RC-20/25 0.20 25 labeled – 100 729230 400
Xtra RC-45/25 0.45 25 labeled – 100 729231 400
RC-20/15 MS* 0.20 15 yellow blue 100 729036 800
RC-45/15 MS* 0.45 15 colorless blue 100 729037 800

*MS= Minispike on filter exit.

CHROMAFIL Disposable Filters

This table lists the chemical compatibility of our CHROMAFIL materials. The chemical compatibility depends on several parameters such as time, pressure and concentration. In most cases, CHROMAFIL filters will have only short contact with a solvent. In these cases they may be used despite limited compatibility. For example, a PTFE filter with PP housing does not liberate any UV-detectable substances during filtration of 5 ml THF, although PP shows only limited resistance towards THF.

INTERACTIVE COMPATIBILITY CALCULATOR

+ Resistant | – Not Resistant | O Limited Resistance

  • MV-Cellulose Mixed Esters
  • CA-Cellulose Acetate
  • RC-Regenerated Cellulose
  • PA-Polyamide
  • PTFE-Polytetrafluoroethylene (Teflon)
  • PVDF-Polyvinylidene difluoride
  • PES-Polyethersulfone
  • PET-Polyester
  • GF-Glass Fiber
  • PP-Polypropylene (Housing Material)

Solvent Material
MV CA RC PA PTFE PVDF PES PET GF PP
Acetaldehyde - - + 0 + + + + 0
Acetic acid, 100% - - - - + + + + + +
Acetone - - + + + + + + + +
Acetonitirle - - + + + + + + + +
Ammonia, 25% - - 0 - + + + 0 + +
Benzene + + + + + 0 + + 0
n-Butanol + + + 0 + + + + + +
Cyclohexane + + + 0 + + + + + +
Dichloromethane + - + - + + - + + -
Diethyl ether 0 0 + + + + + + + 0
Dimethylformamide - - 0 + + - - + + +
1, 4-Dioxane - - + + + 0 - + + 0
Ethanol - + + + + + + + + +
Ethyl acetate - - + + + + + + + 0
Ethylene glycol 0 0 + + + + + + + +
Formic acid, 100% + - 0 - + + + 0 + +
Hydrochloric acid, 30% - - - - + + + - + +
Methanol - - + + + + + + + +
Nitric acid, 65% - - - - 0 0 0 + -
Oxalic acid, 10% aqueous + - + - + + + + +
Petroleum ether + + + + + + + + + +
Phosphoric acid, 80% - - 0 - + 0 + + +
Potassium hydroxide, 1 mol/1 - - 0 + + 0 + 0 + +
2-Propanol + + + + + + + + + +
Sodium hydroxide, 1 mol/1 - - 0 + + 0 0 0 0 -
Tetrachloromethan + - + + + 0 + + 0
Tetrahydrofuran - - + 0 + + - + + -
Toluen + - + + + + + + + -
Trichloroethylene + + + 0 + + + + 0
Trichloromethan + - + - + + - + + -
Urea + + + + + + + + +
Water + + + + + + + + + +
DATA NOT GUARANTEED
