Chromabond® Vacuum Manifold

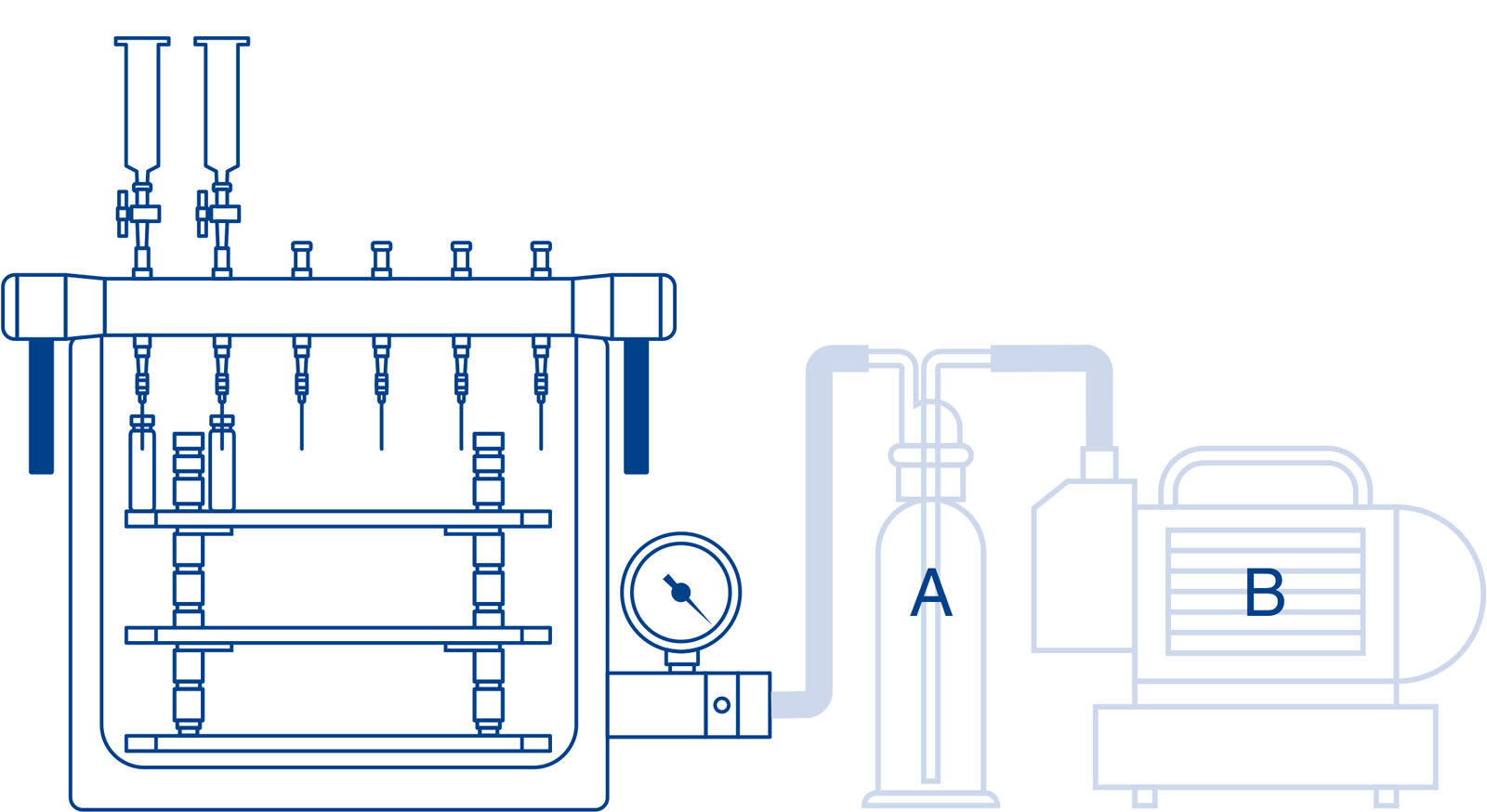

CHROMABOND vacuum manifolds permit simultaneous preparation of 12, 16, or 24 samples. There are three different configurations to hold up to 12, 16, or 24 CHROMABOND columns or CHROMAFIX® cartridge.
The manifolds consist of a rectangular glass cabinet with a vacuum gauge and a polypropylene lid which hold the columns or cartridges.
With the control valve, the vacuum in the chamber can be adjusted and read from the gauge.
The replaceable valves/stop cocks on the lid allow individual vacuum control for each solid-phase extraction column if required.
The cabinet is fitted with a variable rack with exchangeable partitions, which accept a wide variety of vessels like test tubes, measuring flasks, scintillation vials, autosampler vials, plastic vials, and many more.
Chromabond® Vacuum Manifold Replacement Parts
For simultaneous preparation of up to 12, 16 or 24 sample.
Replacement parts and accessories for special applications.
- 1 – Rectangular glass cabinet; 2 sizes available:
-
- Small for up to 12 CHROMABOND columns or CHROMAFIX cartridges;
- Large for up to 16 CHROMABOND LV columns or up to 24 CHROMABOND columns or CHROMAFIX cartridges (depending on lid)
- 2 – Polypropylene lid
- 3 – Vacuum gauge for pressure reading
- 4 – Control valve for adjustment of vacuum
- 5 – Replaceable valves for vacuum control of individual SPE columns
- 6 – Variable rack with exchangeable partitions, which accept a wide variety of vessels like test tubes, measuring flasks, scintillation vials, autosampler vials, plastic vials etc.
- 7 – CHROMABOND LV columns with 15 mL sample reservoir for medium size samples
- 8 – Polypropylene sample reservoir (30 or 70 mL available)
- 9 – Adapter for sample reservoirs
- 10 – CHROMABOND tubing adapters
Contamination

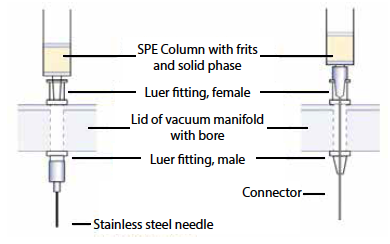

For special applications, which require maximum protection from cross-contamination we supply chrome-plated brass valves and stainless steel or PTFE connectors, the application of which is shown below. These special connectors are fitted through the lid; thus the sample only has contact with the inert connector and can flow directly into the receptacle.
Manifolds
| Catalog No. | Description | Price (USD) |
|---|---|---|
| 730150N | Chromabond SPE vacuum manifold for up to 12 pos. Consists of glass cabinet w/lid (incl. 4x feet, Luer fittings, lid gasket), needles (PP), vacuum gauge, control valve, Luer valves (stopcocks), caps, var. rack, PP-tank (waste collector/container) |  Inquire |
| 730151N | Chromabond SPE vacuum manifold for up to 24 pos. Consists of glass cabinet w/lid (incl. 4x feet, Luer fittings, lid gasket), needles (PP), vacuum gauge, control valve, Luer valves (stopcocks), caps, var. rack, PP-tank (waste collector/container) | Inquire |
Replacement Parts
| Catalog No. | Description | Price (USD) |
|---|---|---|
| 730386 | Chromab. Tubing adaptor 15,45,70 ml |  Buy now $246.00 |
| 730387 | Chromab. Tubing adaptor 15,45,70 ml col. | Buy now $246.00 |
| 730243 | Chromab. Tubing adaptor f 1,3,6 ml | Buy now $158.00 |
| 730189.12 | Chromab. valves, brass, tarnished | Buy now $435.00 |
| 730183.12 | Chromabond Luer fitting for LID female, 12 | Buy now $106.00 |
| 730184.12 | Chromabond Luer fitting for LID male, 12pk | Buy now $106.00 |
| 730194 | Chromabond Male Luer Cap, non-vented, PE, blue, 12/pk | Buy now $72.50 |
| 730106 | Chromabond Stainless Steel Connector | Buy now $236.00 |
| 730152 | Chromabond stainless steel needle, 12 pcs | Buy now $82.90 |
CHROMABOND® Drying Attachments and Collection Racks For Evaporation of Eluates
If the eluate has to be evaporated, this can be performed with the so-called drying attachment (11). This special lid has a gas connector on one side (12), from which the gas is fed simultaneously to the 12 or 24 stations (13). Thus 12 or 24 eluates can be evaporated simultaneously by just changing the lid and applying a stream of inert gas, e.g., nitrogen.
