CHROMABOND® SA – SPE Cartridges

SA – Benzenesulfonic acid modified silica cation exchanger for SPE (SCX)

Properties:

  • Benzenesulfonic acid modified silica, strongly acidic cation exchanger (capacity ~ 0.5 meq/g)
  • Base material silica, pore size 60Å, particle size 45µm, specific surface 500 m2/g
  • pH stability 2–8
  • Adsorbent with hydrophobic and π-π interactions (benzene ring)
  • Ion exchange of organic compounds from aqueous matrix

Recommended Applications:

  • Amino acids, amines
  • Chlorophyll
  • PCBs

CHROMABOND® Large Volume – 15mL – 500mg

Plastic Columns

Catalog No.DescriptionPrice (USD)
730609Chromab. Sorbent SA, 100 g Inquire
730425SPE Cartridges, Chromabond SA, 6 ml, 500 mg, 30/pk Buy now $139.00
730076SPE Cartridges, Chromabond, SA, 1ml, PP, 100mg, 100/pk Buy now $243.00
730275SPE Cartridges, Chromabond, SA, 3ml, PP, 200mg, 50/pk Buy now $187.00
730077SPE Cartridges, Chromabond, SA, 3ml, PP, 500mg, 50/pk Buy now $209.00
730077.250SPE Cartridges, Chromabond, SA, 3ml, PP, 500mg, 250/pk Buy now $835.00
730212SPE Cartridges, Chromabond, SA, 6ml, PP, 1000mg, 30/pk Buy now $203.00

Large Volume Columns

Catalog No.DescriptionPrice (USD)
732083SPE Cartridges, Chromabond LV, SA, 15ml, 500mg, 30/pk Buy now $113.00

Cartridges

Catalog No.DescriptionPrice (USD)
731831Chromafix SA (S), 50/pk Buy now $171.00
731832Chromafix SA (M), 50/pk Buy now $200.00
731833Chromafix SA (L), 50/pk Buy now $266.00

96 Well Plate

Catalog No.DescriptionPrice (USD)
738141.100MSPE, Chromabond, 96 well plates, SA, 100mg, 1/pk Buy now $240.00
Chromabond® Polypropylene Columns

  • PP columns with PE filter elements
  • Different sizes from 1, 3, 6 up to 150 ml
  • Adsorbent weights from 20 mg to 50 g
  • Male luer tip as exit
  • Compatible with most robots (e. g. Gilson ASPEC™, Caliper AutoTrace®, …)
Chromabond® Glass Columns

  • Glass columns with chemically very inert glass fiber
  • Filter elements (nominal pore size 1 µm)
  • Two different sizes: 3 and 6 ml
  • Available with all CHROMABOND® phases
  • Excludes any influence from the column material (e. g. plasticizers, …)
Chromafix® Cartridges

  • PP cartridges with PE filter elements
  • Three different sizes with different adsorbent weights: Small (0.4 ml), Medium (0.8 ml), Large (1.8 ml)
  • Female Luer tip at the inlet, male Luer tip as exit
  • Offers an alternative way of handling using positive pressure by syringes or peristaltic pumps
  • Especially suited for convenient solid-phase extraction of small sample volumes

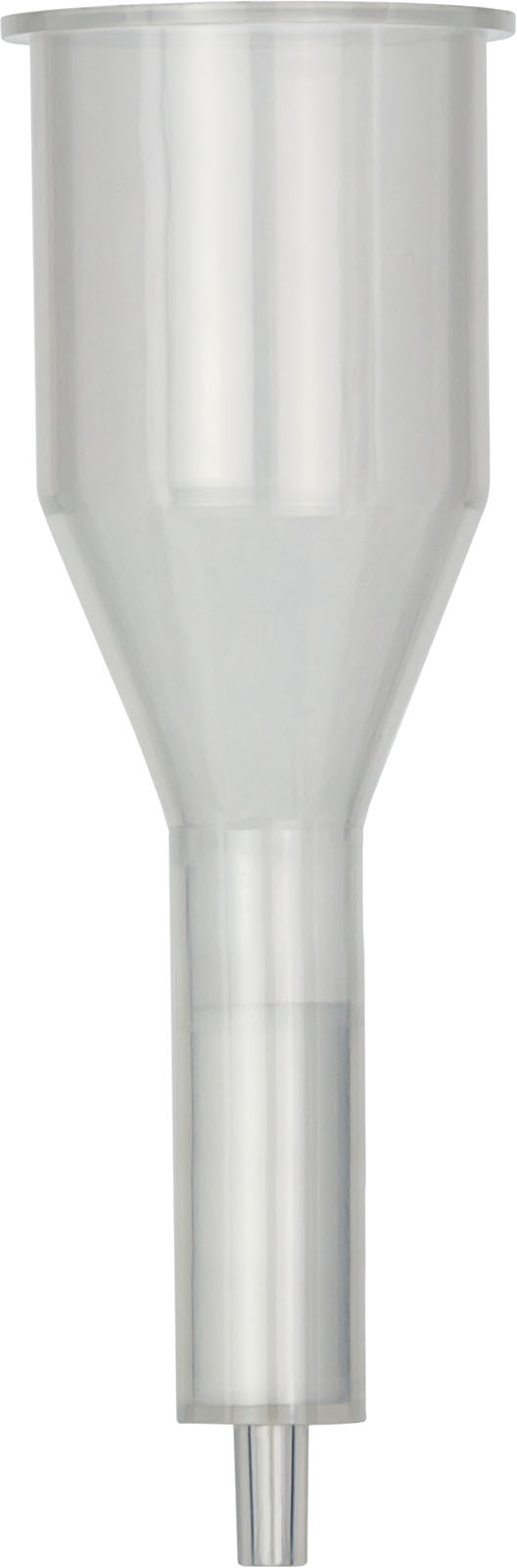

Chromabond® LV Columns

  • Large volume PP columns with PE filter elements
  • Three different adsorbent weights (100, 200 and 500 mg)
  • funnel-shaped reservoir with 15 ml volume
  • Especially for the clinical samples-the whole sample (e. g. urine, serum, blood) can be applied to the column in one step
  • Can be directly used in the Zymate® lab robots of Zymark
Chromabond® Multi 96- SPE in 96-Well format

  • 96-well polypropylene plates with PE filter elements
  • Cavity volume of 1.5 ml
  • Adsorbent weights from 25 to 100 mg
  • Supplied with any CHROMABOND® SPE adsorbents
  • For simultaneous preparation of 96 samples
  • Easy method transfer from CHROMABOND® columns or CHROMAFIX® cartridges to CHROMABOND® MULTI 96
  • Readily adaptable to all common automated/robotic handling systems
