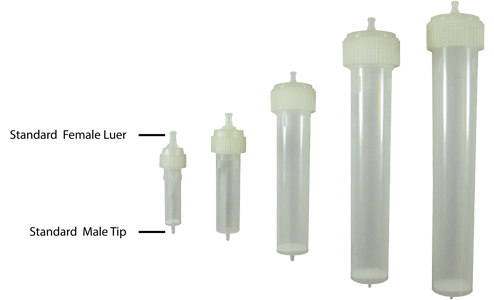

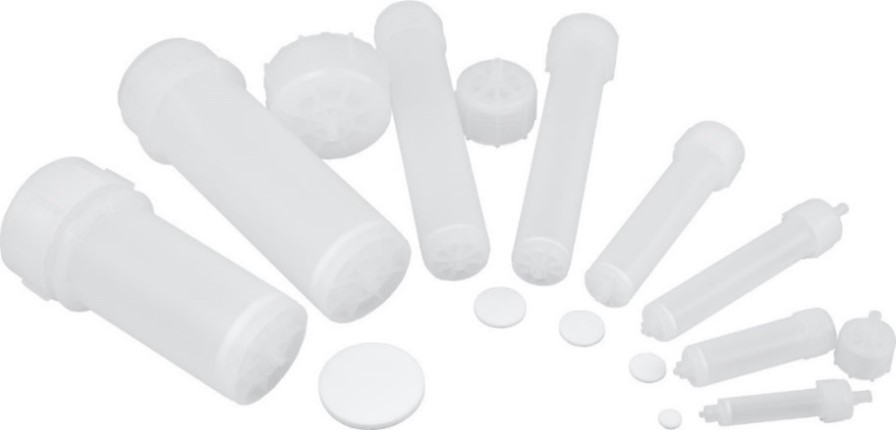

Sorbtech High Performance Empty Flash Cartridges – EZ Flash Cartridges

empty flash cartridges

EZ Flash Cartridges are available in two variations:

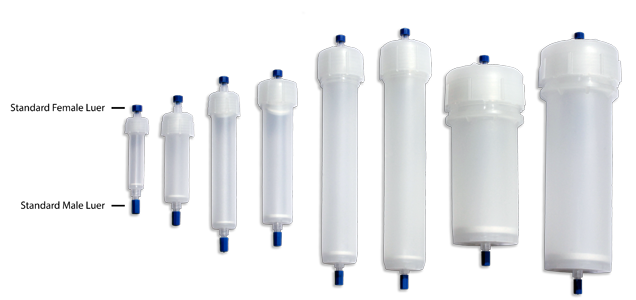

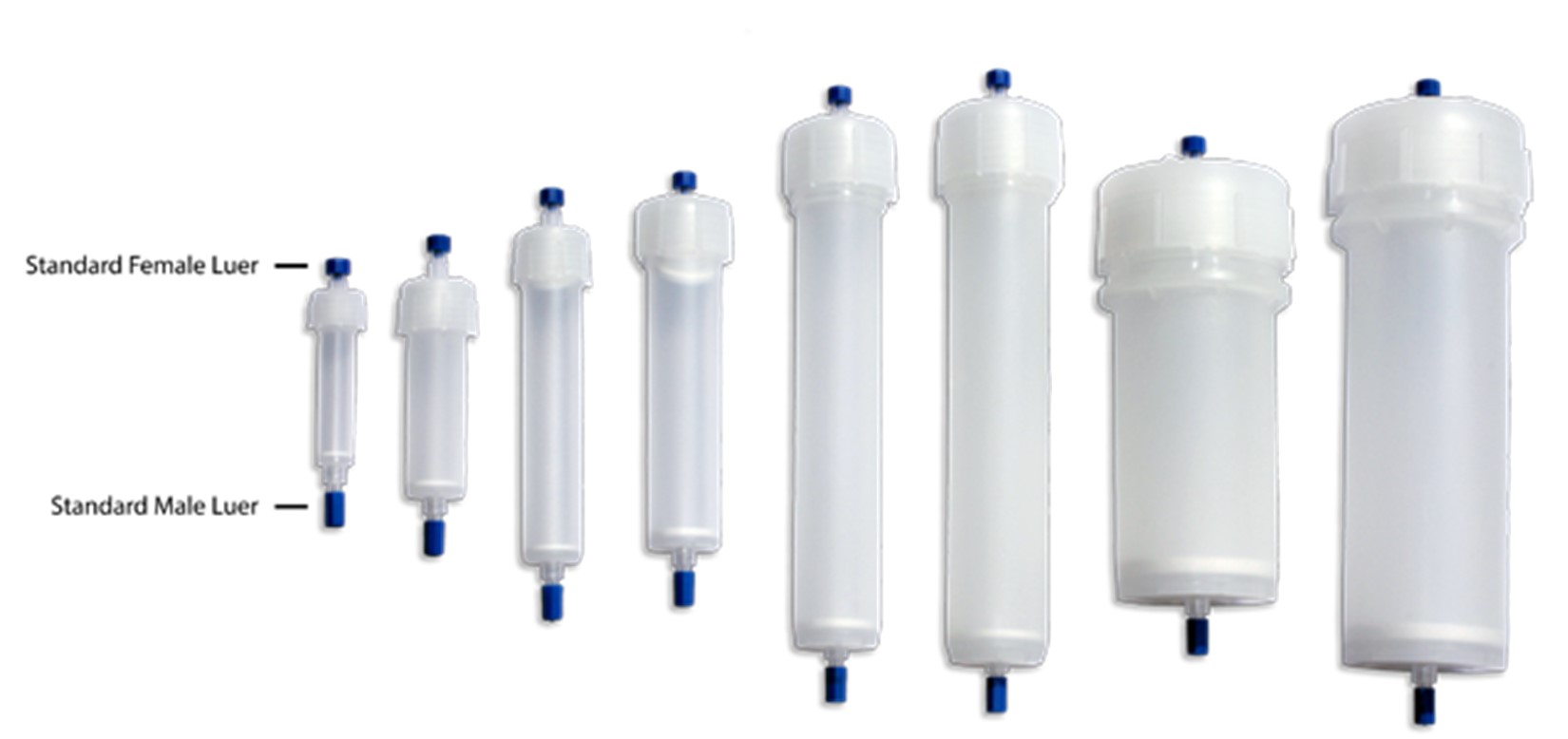

Empty Cartridges with Female Luer-Lok™ Top and Male Luer-Lok Bottom

  • Easily pack and repack with any adsorbent
  • Made with solvent-resistant polypropylene
  • Pressure Rated to 200 psi
  • Available in ten sizes (5, 19, 32, 53, 85, 108, 143, 160, 303, and 420 ml,) which is equivalent to 4, 12, 25, 40, 60, 80, 100, 120, 220, and 330 grams of packed flash grade silica gel.
  • Suitable for use as a solid load injection column
  • Capable of assembling multiple cartridges in series
  • Components: screw cap with disbursing unit, frits, O-ring and end tips
  • Replacement frits and O-rings are available
Female Luer-Lock-Top-Male Luer-Lock-Bottom

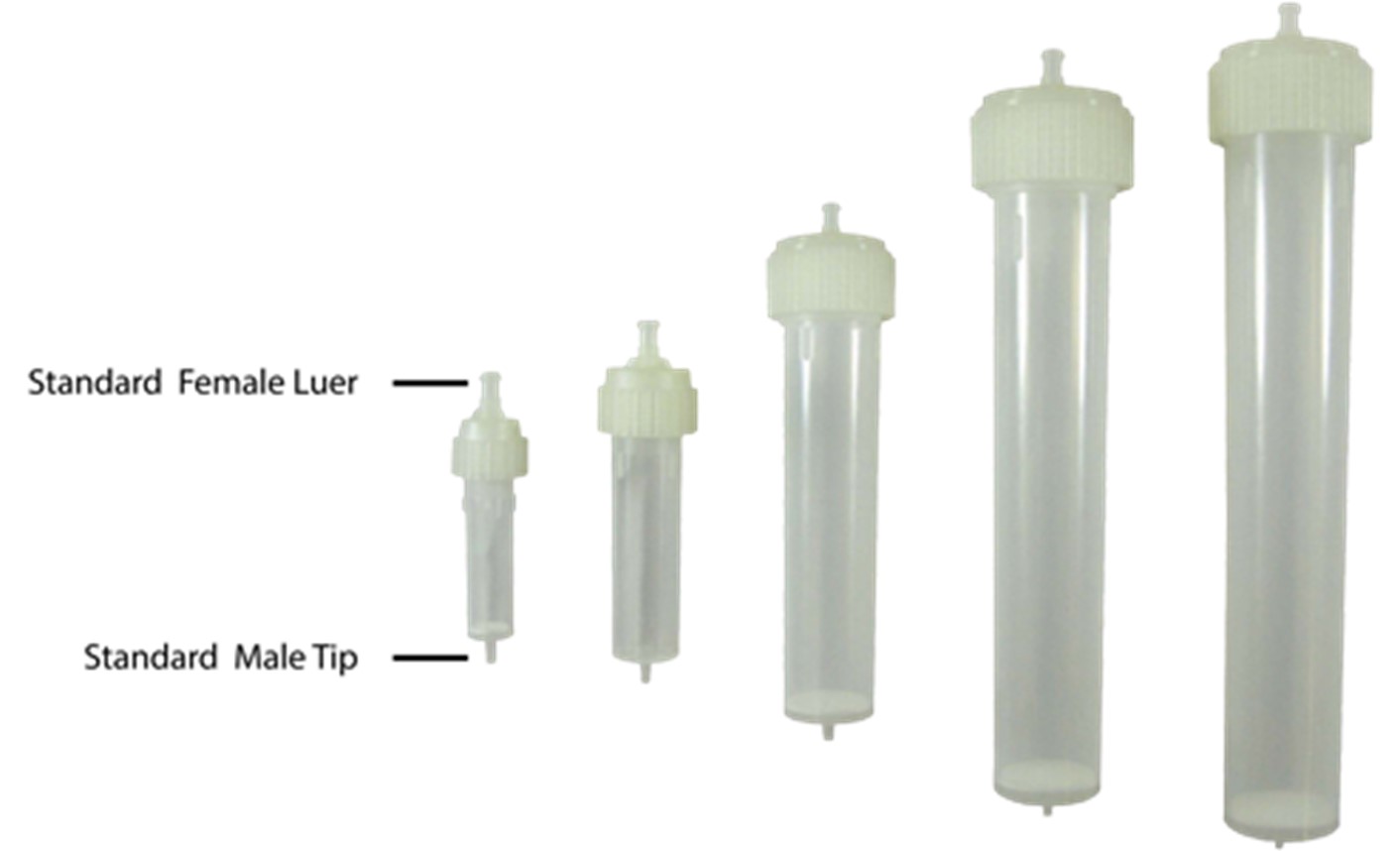

Empty Cartridges with Female Luer-Lok Top and Slip-tip Bottom

Female Luer-Lock-Top-Slip-tip-Bottom
  • Easily pack and repack with any adsorbent
  • Made with solvent-resistant polypropylene
  • Pressure Rated to 100 psi
  • Available in five sizes (8, 25, 80, 170, and 230 ml,) which is equivalent to 4, 12, 40, 80, and 120 grams of packed flash grade silica gel.
  • Top and Bottom frits are made of polyethylene and have a 15-45um porosity.
  • Replacement frits are available.

Luer Lok™ Top

Catalog No.DescriptionPrice (USD)
FCST-4-20Flash Cartridge, Screw Top, Luer Connect, includes top and bottom frit, PP, 4g, 8ml, 20/pk Buy now $197.12
FCST-40-20Flash Cartridge, Screw Top, Luer Connect, Includes top and bottom frit, PP, 40g, 80ml, 20/pk Buy now $311.52
FCST-Frts-4-Top-20pkTop Frits for FCST-4-20 (4g) Cartridges, 0.507in diam., 20/pk Inquire
FCST-Frts-4-Bot-20pkBottom Frits for FCST-4-20 (4g) Cartridges, 0.493in diam., 20/pk Inquire
FCST-Frts-12-Bot-20pkBottom frits for FCST-12-20 (12g) Cartridges, 0.752in diam., 20/pk Inquire
FCST-Frts-40-Top-20pkTop Frits for FCST-40-20 (40g) Cartridges, 1.080in diam., 20/pk Inquire
FCST-Frts-40-Bot-20pkBottom Frits for FCST-40-20 (40g) Cartridges, 1.028in diam., 20/pk Inquire
FCST-Frts-80-Top-20pkTop Frits for FCST-80-20 (80g) Cartridges, 1.437in diam., 20/pk Inquire
FCST-Frts-80-Bot-20pkBottom Frits for FCST-80-20 (80g) Cartridges, 1.220in diam., 20/pk Inquire
FCST-Frts-120-Top-16pkTop Frits for FCST-120-16 (120g) Cartridges, 1.450in diam., 16/pk Inquire
FCST-Frts-120-Bot-16pkBottom Frits for FCST-120-16 (120g) Cartridges, 1.335in diam., 16/pk Inquire

Luer Lok™ Top & Bottom

Catalog No.DescriptionPrice (USD)
FCSTLL-4-20Flash Cartridge, Screw Top, Luer Lock end fittings, includes top and bottom frit, o-ring, dispersing insert, PP, 4g, 8ml, 20/pk Buy now $146.85
FCSTLL-12-18Flash Cartridge, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 12g, 27ml, 18/pk Buy now $176.40
FCSTLL-25-12Flash Cartridge, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 25g, 46ml, 12/pk Buy now $194.62
FCSTLL-40-12Flash Cartridge, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 40g, 72ml, 12/pk Buy now $168.78
FCSTLLv2-60-12Flash Cartridge ver. 2, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 60g, 104ml, 12/pk Buy now $250.80
FCSTLLv2-100-6Flash Cartridge ver. 2, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 100g, 176ml, 6/pk Buy now $229.08
FCSTLLv2-120-10Flash Cartridge ver. 2, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 120g, 215ml, 10/pk Buy now $312.05
FCSTLLv2-220-6Flash Cartridge ver. 2, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 220g, 376ml, 6/pk Buy now $242.25
FCSTLLv2-330-5Flash Cartridge ver. 2, Screw Top, Luer Lock end fittings, Includes top and bottom frit, o-ring, dispersing insert, PP, 330g, 539ml, 5/pk Buy now $314.60
FCSTLL-Frts-4-Top-100pkTop Frits for Screw Top Luer Lock Cartridge, 4g, 16-20um, 100pk Buy now $25.90
FCSTLL-Frts-4-Bot-100pkBottom Frits for Screw Top Luer Lock Cartridge, 4g, 16-20um, 100pk Buy now $25.90
FCSTLL-Frts-12-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 12g, 16-20um, 20pk Buy now $11.44
FCSTLL-Frts-12-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 12g, 16-20um, 20pk Buy now $11.44
FCSTLL-Frts-25-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 25g, 16-20um, 20pk Buy now $11.44
FCSTLL-Frts-25-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 25g, 16-20um, 20pk Buy now $11.44
FCSTLL-Frts-40-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 40g, 16-20um, 20pk Buy now $22.88
FCSTLL-Frts-40-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 40g, 16-20um, 20pk Buy now $22.88
FCSTLL-Frts-60-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 60g, 20-25um, 20pk Buy now $40.07
FCSTLL-Frts-60-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 60g, 20-25um, 20pk Buy now $40.07
FCSTLL-Frts-80-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 80g, 20-25um, 20pk Buy now $26.20
FCSTLL-Frts-80-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 80g, 20-25um, 20pk Buy now $27.72
FCSTLL-Frts-100-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 100g, 20-25um, 20pk Buy now $131.25
FCSTLL-Frts-100-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 100g, 20-25um, 20pk Buy now $131.25
FCSTLL-Frts-120-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 120g, 20-25um, 20pk Buy now $42.07
FCSTLL-Frts-120-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 120g, 20-25um, 20pk Buy now $42.07
FCSTLL-Frts-220-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 220g, 20-25um, 20pk Buy now $137.81
FCSTLL-Frts-220-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 220g, 20-25um, 20pk Buy now $137.81
FCSTLL-Frts-330-Top-20pkTop Frits for Screw Top Luer Lock Cartridge, 330g, 20-25um, 20pk Buy now $137.81
FCSTLL-Frts-330-Bot-20pkBottom Frits for Screw Top Luer Lock Cartridge, 330g, 20-25um, 20pk Buy now $137.81

O-ring for Screw Top Luer Lock Cartridge, Viton (FKM)

Catalog No.DescriptionPrice (USD)
FCSTLL-ORV-4O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 4g, 1ea. Buy now $3.20
FCSTLL-ORV-12O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 12g, 1ea. Buy now $7.45
FCSTLL-ORV-25O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 25g, 1ea. Buy now $7.45
FCSTLL-ORV-40O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 40g, 1ea. Buy now $9.60
FCSTLL-ORV-60O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 60g, 1ea. Buy now $17.05
FCSTLL-ORV-80O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 80g, 1ea. Buy now $14.40
FCSTLL-ORV-100O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 100g, 1ea. Buy now $24.00
FCSTLL-ORV-120O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 120g, 1ea. Buy now $17.05
FCSTLL-ORV-220O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 220g, 1ea. Buy now $24.00
FCSTLL-ORV-330O-ring for Screw Top Luer Lock Cartridge, Viton (FKM), 330g, 1ea. Buy now $24.00

O-ring for Screw Top Luer Lock Cartridge, Silicone

Catalog No.DescriptionPrice (USD)
FCSTLL-ORS-4-50O-ring for Screw Top Luer Lock Cartridge, Silicone, 4g, 50pk Buy now $12.50
FCSTLL-ORS-12-50O-ring for Screw Top Luer Lock Cartridge, Silicone, 12g, 50pk Buy now $35.00
FCSTLL-ORS-25-50O-ring for Screw Top Luer Lock Cartridge, Silicone, 25g, 50pk Buy now $35.00
FCSTLL-ORS-40-50O-ring for Screw Top Luer Lock Cartridge, Silicone, 40g, 50pk Buy now $50.00
FCSTLL-ORS-60-20O-ring for Screw Top Luer Lock Cartridge, Silicone, 60g, 20pk Buy now $30.00
FCSTLL-ORS-80-20O-ring for Screw Top Luer Lock Cartridge, Silicone, 80g, 20pk Buy now $30.00
FCSTLL-ORS-120-20O-ring for Screw Top Luer Lock Cartridge, Silicone, 120g, 20pk Buy now $30.00
Empty Cartridges with Female Luer-Lok Top and Male Luer-Lok Bottom
Cat. # Units/Box Liquid Volume (mL) Cartridge Length (mm) Cartridge ID (mm) Max. Press. (psi/bar) Length (cm) Radius (cm) Empty Volume (mL)
FCSTLL-4-20 20 5 115.1 12.8 200/13.8 6.2 0.6 8
FCSTLL-12-18 18 19 137.8 21.4 200/13.8 7.5 1.1 27
FCSTLL-25-12 12 32 188.2 21.6 200/13.8 12.5 1.1 46
FCSTLL-40-12 12 53 188.7 26.8 200/13.8 12.8 1.3 72
FCSTLL-60-12 12 85 173.3 36.6 200/13.8 10.2 1.8 107
FCSTLL-80-10 10 108 263.5 31.2 200/13.8 19.6 1.6 150
FCSTLL-100-6 6 143 146.6 60.4 150/10.3 6.8 3.0 195
FCSTLL-120-10 10 160 277.7 36.6 200/13.8 21.0 1.8 221
FCSTLL-220-6 6 303 218.5 60.6 150/10.3 13.8 3.0 398
FCSTLLv2-330-5 5 420 271.6 60.6 150/10.3 19.2 3.0 539
Empty Cartridges with Female Luer-Lok Top and Slip-tip Bottom
Cat. # Units/Box Volume (mL) Cartridge Length (mm) Cartridge ID (mm) Max. Pressure (psi/bar) Length (cm) Radius (cm) Empty Volume (mL)
FCST-4-20 20 5 95 13 100/6.9 6.5 0.7 9
FCST-40-20 20 48 169 24.56 100/6.9 13.2 1.2 63
FCST-80-20 20 115 238 33.15 100/6.9 20.0 1.7 173
FCST-120-16 16 160 264 33.55 100/6.9 22.2 1.7 196
  • Luer-Lok top and bottom fittings allow for easy connection to any flash system
  • Top & Bottom Frit Included (replacement frits available)
  • Frit: Polyethylene, 10um
  • O-ring
  • Cap has dispersion disc
  • Pressure Rated to 200 psi
  • Polypropylene (PP) cartridge material

  • Luer-Lok top and Luer slip bottom fittings allow for easy connection to any flash system
  • Top & Bottom Frit Included (replacement frits available)
  • Frit: Polyethylene, 15-45um
  • Screw Cap allows for easy assembly
  • Pressure Rated to 100 psi
  • Polypropylene (PP) cartridge material
