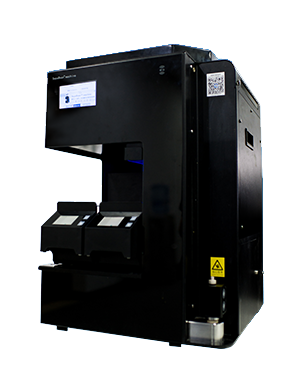

Santai SepaBean™ Machine 2
- Medium pressure model which could perfectly match with SepaFlash spin-welded columns for higher separation efficiency.
- Binary gradient with any combinations of two solvents, 3rd solvent as a modifier, able to run complex separation conditions.
- Optional ELSD to cover more types of samples.
Other Specifications:
- Gradient types: isocratic, linear, step
- Flowcell optical path length: 0.3 mm (default); 2.4 mm (optional)
- Spectral display: single/dual/all-wavelengths*
- Sample loading method: manual load
- Fraction collection method: all, waste, threshold, slope, time
- Fraction collector: Standard: tubes (13 mm, 15 mm,18 mm, 25 mm); Optional: French square bottle (250 mL, 500 mL) or large collection bottle; Customizable collection container
- Control device: wireless operation through mobile devices**
- Certificate: CE, cTUVus (in process)
| Model | SepaBean™ Machine 2 |
|---|---|
| Flow Range | 1 – 300 mL/min |
| Maximum Pressure | 500 psi (33.5 bar) |
| Pumping System | Highly accurate, dual piston pumps |
| Gradients | Four solvents binary with 3rd solvent as modifier |
| Detector | DAD variable UV (200 – 400nm) or DAD variable UV (200-400 nm) + Vis (400 – 800 nm)or ELSD |
| Sample Loading Capacity | 10 mg – 33 g |
| Column Sizes | 4 g – 330 g, up to 3 kg with adapters |
